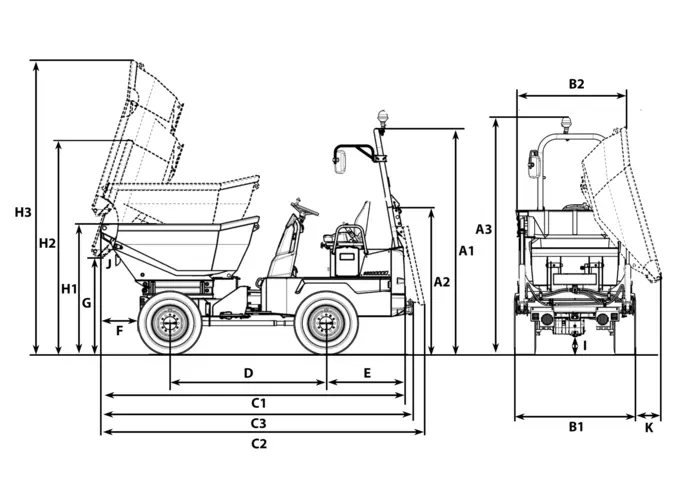

| Front tip skip | Swivel tip skip | Concrete skip | High swivel tip skip | ||
| A1 | Height ROPS | 2,799 mm | 2,799 mm | 2,799 mm | 2,799 mm |
| A1 | Height with cab | 2,689 mm | 2,689 mm | 2,689 mm | 2,689 mm |
| A2 | Height of ROPS tilted | 1,913 mm | 1,913 mm | 1,945 mm | 1,945 mm |
| B1 | Width of vehicle | 1,730 mm | 1,730 mm | 1,730 mm | 1,730 mm |
| B2 | Width of skip | 1,730 mm | 1,730 mm | 1,730 mm | 1,730 mm |
| C1 | Total length ROPS | 3,710 mm | 3,828 mm | 4,806 mm | 4,071 mm |
| C1 | Total length of cab | 4,139 mm | 4,139 mm | 4,139 mm | 4,139 mm |
| C2 | Total length ROPS tilted | 3,984 mm | 4,102 mm | 5,062 mm | 4,326 mm |
| C3 | Total length with towing device | 3,786 mm | 3,906 mm | 4,890 mm | 4,156 mm |
| D | Wheel base | 1,945 mm | 1,945 mm | 1,945 mm | 1,945 mm |
| E | Rear overhang | 963 mm | 963 mm | 963 mm | 963 mm |
| F | Dumping width | 543 mm | 482 mm | 539 mm | 492 mm |
| H1 | Skip height | 1,473 mm | 1,475 mm | 1,698 mm | 1,639 mm |
| H2 | Skip height tilted | 2,074 mm | 3,082 mm | 3,040 mm | 3,342 mm |
| J | Dumping angle | 48 ° | 48 ° | 48 ° | 46 ° |
DW30
